Сообщение #241 sega72 » 05.10.2015, 09:26

Gary, :clap:
sega72
Репутация: 6
С нами: 10 лет

Сообщение #242 Gary » 05.10.2015, 10:55

..)
Gary M
Репутация: 3
С нами: 9 лет 1 месяц

Сообщение #243 SanJose » 05.10.2015, 14:18

@sega72
Next additions will be in Google Drive ok? You don't like sharemods?
And please if You can write messages in english, because im not good at russian :oops:
SanJose
Репутация: 55
С нами: 11 лет 6 месяцев

Сообщение #244 sega72 » 05.10.2015, 14:30

SanJose, Google Drive will be Ok. My antivirus software didn't like sharemods. Excuse me for my english, cause I'm not good in english too ))
sega72
Репутация: 6
С нами: 10 лет

Сообщение #245 Gary » 05.10.2015, 16:00

@SanJose
I would like to draw your attention to an unusual BC5000 (4705)
if it is correct on my part :smile:
Gary M
Репутация: 3
С нами: 9 лет 1 месяц

Сообщение #246 SanJose » 05.10.2015, 18:04

BEOCORD 5000 4705
@Gary
Links you posted at yandex are not working.

https://drive.google.com/file/d/0BxvGsS6WHzXuamFBMFllUzNBb1U/view?usp=sharing
Вложения
SanJose
Репутация: 55
С нами: 11 лет 6 месяцев

Сообщение #247 Gary » 05.10.2015, 18:46

@SanJose
I know
cool! tremendous thank you!

/check your private messages/
Gary M
Репутация: 3
С нами: 9 лет 1 месяц

DENON V3

Сообщение #248 noel62 » 06.10.2015, 14:36

Hello everyone,
Here is my previous DENON mod V3 cut-down to its analog meters (available in gold and silver).
Enjoy!
https://dl.dropboxusercontent.com/u/414891/%5BAnalog%5D%20DENON_V3.zip
noel62
Гость

Сообщение #249 SanJose » 06.10.2015, 17:39

AKAI GX 747
Вложения
Akai GX 747.zip
(101.46 КБ) Скачиваний: 2313
SanJose
Репутация: 55
С нами: 11 лет 6 месяцев

Сообщение #250 kgena_ua » 06.10.2015, 21:02

foo_vis_vumeter and wsh:
Код: Выделить всё
// ==PREPROCESSOR==
// @name "Peak meter"
// @author "kgena_ua"
// ==/PREPROCESSOR==

// foo_vis_vumeter.dll required

function RGB(r,g,b) { return (0xff000000|(r<<16)|(g<<8)|(b)); }
function RGBA(r, g, b, a) { return ((a << 24) | (r << 16) | (g << 8) | (b)); }

var font = gdi.Font("Arial",9,1);
var font2 = gdi.Font("Arial",11,0);

var set_path = fb.ProfilePath + "\\maybe\\settings\\";

DT_CENTER = 0x00000001;
DT_VCENTER = 0x00000004;
DT_SINGLELINE = 0x00000020;
DT_WORD_ELLIPSIS = 0x00040000;

ColorTypeCUI = { background: 3,};
var bgcolor = window.GetColorCUI(ColorTypeCUI.background);
//var bgcolor = RGB(40,40,40);

var dll;
var is_dll = utils.CheckComponent("\\user-components\\foo_vis_vumeter\\foo_vis_vumeter");
if (is_dll) {dll = false} else {dll = true};

var ww, wh;
var on_mouse = false;

var color1 = [ RGB(90,105,114), RGB(140,164,179) ];
var color2 = [ RGB(200,200,200), RGB(90,105,114) ];
var bg_offset_color = bgcolor;
var offset_color = color2[0];

var db = new Array(-30,-25,-20,-17.5,-15,-12.5,-10,-7.5,-5,-4.5,-4,-3.5,-3,-2.5,-2,-1.5,-1,-0.5,0,0.1,1,1.5,2,2.5,3,3.5,5);
var db_l = new Array(-85-80,-75,-70,-65,-50,-45,-40,-35,-30);

var separator;

for (var i = 0; i <= db.length; i++) {
    if (db[i] == 0) {separator = i};
}

var VUMOffset_t, t_height, t_width;

if (dll) {VUMeter = new ActiveXObject("VUMeter")};
if (dll) {VUMeter.RegisterWindow(window.ID)}; // do not use for transparent mode

function ToDB(Level){
    return Math.round(2000*Math.log(Level)/Math.LN10)/100;
}

function on_size() {
    ww = window.Width;
    wh = window.Height;
}

//var points = 27;
var col = 10;
var ytext = 5;
var yL = ytext + 16;
var h = 2;
var yLM = yL + h + 4;
var hM = 5;
var yRM = yLM + 10;
var yR = yRM + hM + 4;

var wL = 0, wR = 0;
var xLanim = 0, xRanim = 0;
var xL = 0, xR = 0;

var xLManim = 0, xRManim = 0;
var xLM = 0, xRM = 0;

var kLM = 0, kRM = 0;
var kLM2 = 0, kRM2 = 0;

var xLManim2 = 0, xRManim2 = 0;

var kL = 0, kR = 0;
var wLanim = 0, wRanim = 0;

var oldwL = 0, oldwR = 0;

function on_paint(gr) {
    !window.IsTransparent && gr.FillSolidRect(0, 0, ww, wh, bgcolor);
    //gr.FillSolidRect(0, 0, ww, wh, RGB(100,100,100));


    var color = [];
    var combinedColor1 = [];
    var combinedColor2 = [];

    var points = db.length;
    var s1 = separator;
    var s2 = points - s1;
        var points_l = db_l.length;

    for(var j = 0; j < s1; j++) {
        combinedColor1.push(combineColors(color1[0], color1[1], j / s1));
    }
    for(var j = 0; j < s2; j++) {
        combinedColor2.push(combineColors(color2[0], color2[1], j / s2));
    }

    color = combinedColor1.concat(combinedColor2);

    if (dll) {
        L = VUMeter.LeftLevel;
        R = VUMeter.RightLevel;
        LM = VUMeter.LeftPeak;
        RM = VUMeter.RightPeak;
    }

    var offset = (ww - col * 1) / points;
    var w = offset - 1;

    var offset_l = (ww / 6 - col * 1) / points_l;
    var w_l = offset_l - 1;

    var yLM_l = ytext + 1, yRM_l = yLM_l + 6;
    var hM_l = 2;

    if (fb.IsPlaying && dll) {

        for (var i = 0; i <= points - 0; i++) {
            if (ToDB(LM) > db_l[i]) gr.FillSolidRect(col + 20 + i * offset_l, yLM_l, w_l, hM_l, color[5]);
            if (ToDB(RM) > db_l[i]) gr.FillSolidRect(col + 20 + i * offset_l, yRM_l, w_l, hM_l, color[5]);
        }

        for (var i = 0; i <= points - 0; i++) {

            if((ToDB(L) > db[i] && ToDB(L) < db[i+1])) {wL = i * offset + offset / Math.abs(db[i + 1]-db[i]) * Math.abs(ToDB(L) - db[i]) }
            if (wL > col) gr.FillSolidRect(col, yL, wL, h, color[1]);

            if((ToDB(R) > db[i] && ToDB(R) < db[i+1])) {wR = i * offset + offset / Math.abs(db[i + 1]-db[i]) * Math.abs(ToDB(R) - db[i]) }
            if (wR > col) gr.FillSolidRect(col, yR, wR, h, color[1]);


            if (xLanim <= wL) {xLanim = wL; kL = 0; wLanim = wL - oldwL < 1 ? wLanim : wL - oldwL + 5} else {oldwL = wL};
            if (xLanim > col) gr.FillSolidRect(col + xLanim + 2, yL, wLanim <= 0 ? 5 : wLanim, h, xRanim <= wR ? color[15] : color[8]);

            if (xRanim <= wR) {xRanim = wR; kR = 0; wRanim = wR - oldwR < 1 ? wRanim : wR - oldwR + 5} else {oldwR = wR};
            if (xRanim > col) gr.FillSolidRect(col + xRanim + 2, yR, wRanim <= 0 ? 5 : wRanim, h, xRanim <= wR ? color[15] : color[8]);


            var overL = col + xLanim + 2 + wLanim - ww - 10;
            if (overL > 0) gr.FillSolidRect(ww - overL, ytext + 12, ww - 10, h, color[10]);

            var overR = col + xRanim + 2 + wRanim - ww - 10;
            if (overR > 0) gr.FillSolidRect(ww - overR, yR + h + 1, ww - 10, h, color[10]);


            if (ToDB(LM) > db[i]) gr.FillSolidRect(col + i * offset, yLM, w, hM, color[i]);
            if (ToDB(RM) > db[i]) gr.FillSolidRect(col + i * offset, yRM, w, hM, color[i]);

            if (ToDB(LM) > db[i] && ToDB(LM) < db[i+1]) {xLM = i * offset};
            if (xLManim <= xLM) {xLManim = xLM; xLManim2 = xLM; kLM = 0; kLM2 = 0};
            if (xLManim > col) gr.FillSolidRect(col + xLManim + offset, yLM, w * 0.6, hM , color[Math.round(xLManim/offset)]);

            if (ToDB(RM) > db[i] && ToDB(RM) < db[i+1]) {xRM = i * offset};
            if (xRManim <= xRM) {xRManim = xRM; xRManim2 = xRM; kRM = 0; kRM2 = 0};
            if (xRManim > col) gr.FillSolidRect(col + xRManim + offset, yRM, w * 0.6, hM, color[Math.round(xRManim/offset)]);

            if (xLManim2 > col) gr.FillSolidRect(col + xLManim2 + offset - 0, yLM, w * 0.3, hM, color[Math.round(xRManim2/offset)]);
            if (xRManim2 > col) gr.FillSolidRect(col + xRManim2 + offset - 0, yRM, w * 0.3, hM, color[Math.round(xLManim2/offset)]);
        }
    }else {
        xLM = 0; xRM = 0; xLManim = 0; xRManim = 0;
    }

    if (dll) {
        for (var i = 0; i <= points - 1; i = i + 2) {
            var text_w = gr.CalcTextWidth(db[i], font);
            if (fb.IsPlaying) if (i > 6) gr.GdiDrawText(db[i], font, color1[0], col + offset * i - text_w / 2, ytext, ww, wh);
        }

        for (var i = 1; i <= points - 2; i = i + 2) {
            var text_w = gr.CalcTextWidth(db[i], font);
        }
    }

 //   gr.GdiDrawText("db", font, on == 0 && on_mouse ? color1[1] : color1[0], col, on == 1 ? ytext : yR - 2, ww, wh);
    gr.GdiDrawText("db", font, color1[1], col, ytext, ww, wh);

    VUMOffset_t = Math.round(VUMeter.Offset) + " db";
    t_height = gr.CalcTextHeight(VUMOffset_t, font2) + 2;
    t_width = gr.CalcTextWidth(VUMOffset_t, font2) + 10;
    wheel && gr.FillSolidRect(pos_x - t_width, pos_y - t_height + 0, t_width, t_height, bg_offset_color);
    wheel && gr.GdiDrawText(VUMOffset_t, font2, offset_color, pos_x - t_width, pos_y - t_height + 0, t_width, t_height, DT_SINGLELINE | DT_CENTER | DT_VCENTER | DT_WORD_ELLIPSIS );

 //  gr.GdiDrawText(on_mouse, font2, RGB(250,250,250), 100, 0, ww, wh);
}

function on_playback_new_track() {
    seek_timer && window.ClearInterval(seek_timer);
    seek_timer = window.SetInterval(function() {
        kL = kL + 6;
        wLanim = wLanim - 0.01 * kL;
        kR = kR + 6;
        wRanim = wRanim - 0.01 * kR;
        xLanim = xLanim - 0.5;
        xRanim = xRanim - 0.5;
        kLM = kLM + 15;
        kRM = kRM + 15;
        xLManim = xLManim - 0.002 * kLM;
        xRManim = xRManim - 0.002 * kRM;
        kLM2 = kLM2 + 0.5;
        kRM2 = kRM2 + 0.5;
        xLManim2 = xLManim2 + kLM2;
        xRManim2 = xRManim2 + kRM2;
        window.Repaint();
    },10);
}

function on_playback_stop(reason) {
    if(reason == 0) {
        window.ClearInterval(seek_timer);
        window.Repaint();
    }
}

function on_mouse_lbtn_dblclk(x,y) {
}

var pos_x = 0;
var pos_y = 0;

function on_mouse_move(x,y) {
    on_mouse = true;
    pos_x = x <= t_width ? col + t_width : col + x;
    pos_y = y <= t_height ? t_height : y;
    window.SetCursor(32649);
    window.Repaint();
}

function on_mouse_lbtn_down(x, y) {
}

function on_mouse_lbtn_up(x, y) {
}

function on_mouse_mbtn_dblclk(){
}

function on_mouse_leave() {
    on_mouse = false;
    window.SetCursor(32512);
    window.Repaint();
}

var wheel = false;

function on_mouse_wheel(step) {
    wheel = true;
    VUMeter.Offset = VUMeter.Offset + step;
    window.Repaint();
    tooltip_timer && window.ClearTimeout(tooltip_timer);
    tooltip_timer = window.SetTimeout(function() {
        wheel = false;
        tooltip_timer && window.ClearTimeout(tooltip_timer);
        tooltip_timer = false;
    }, 2000);
}

function on_playback_time(){
    if(!seek_timer) on_playback_new_track();
    window.Repaint();
}

var Tooltip = window.CreateTooltip();
var tooltip_timer = false;
var seek_timer;


function combineColors(c1, c2, f){ // When fraction is 0, result is 100% color1, when f is 1, result is 100% color2.
    var c1 = toRGB(c1);
    var c2 = toRGB(c2);

    var r = Math.round(c1[0] + f * (c2[0] - c1[0]));
    var g = Math.round(c1[1] + f * (c2[1] - c1[1]));
    var b = Math.round(c1[2] + f * (c2[2] - c1[2]));

    return (0xff000000 | (r << 16) | (g << 8) | (b));
}

function toRGB(d){ // convert back to RGB values
    var d = d-0xff000000;
    var r = d >> 16;
    var g = d >> 8 & 0xFF;
    var b = d & 0xFF;

    return [r,g,b];
}
kgena_ua M
Аватара
Откуда: Украина, Днепр
Репутация: 504
С нами: 11 лет 7 месяцев

Сообщение #251 Gary » 06.10.2015, 23:18

@SanJose
!very,very!
Peak latency and all super, but alas :cry:
thank you! :smile:
Gary M
Репутация: 3
С нами: 9 лет 1 месяц

Сообщение #252 simmons » 06.10.2015, 23:29

SanJose:SanJose

Thank you. You going much more better and better! Good luck SanJose!
simmons M
Аватара
Репутация: 128
С нами: 15 лет 8 месяцев

Сообщение #253 Gary » 07.10.2015, 02:38

@SanJose
I don't bother you? Last request: BC2200(4601)/BC1700(4603).
It is not urgent.I want to finish with one idea.
Needed your participation.
Gary M
Репутация: 3
С нами: 9 лет 1 месяц

Сообщение #254 SanJose » 07.10.2015, 16:57

@Gary
BC2200 (4601) and BC1700 (4603) have the same VU's? Anyway:

BEOCORD 2200 (4601) subtype with "fat" needles.

https://drive.google.com/file/d/0BxvGsS6WHzXuNmZQS1M3VzJvRnc/view?usp=sharing

Добавлено спустя 34 минуты 44 секунды:
Forgot to post:
AKAI GX 620
https://drive.google.com/file/d/0BxvGsS6WHzXuaUV2QmM4cWoyU2M/view?usp=sharing
SanJose
Репутация: 55
С нами: 11 лет 6 месяцев

Сообщение #255 Gary » 07.10.2015, 17:35

@SanJose
I don't know how you do it, but it's magical! :yes:
Exactly what I need! Super!
Thank you!

Добавлено спустя 14 минут 49 секунд:
Wow! Bonus! Fit like a native! Buzz!
Gary M
Репутация: 3
С нами: 9 лет 1 месяц

Сообщение #256 SanJose » 07.10.2015, 17:53

@Gary:
Its very easy, if You have very good reference image/photo.
Problems starts when you have bad quality image or proportions are wrong - see Poineer QX and AKAI 747, those two i've made totally by my hand i only looked on the images/photos. :wink:
SanJose
Репутация: 55
С нами: 11 лет 6 месяцев

Сообщение #257 Gary » 07.10.2015, 18:06

@SanJose
Cool! Let anyone try to say that it is not art :biggrin:

SanJose, you did so much that I do not dare to say more.. but I still have two: BC1900 and Grundig V7500 :pray: :smile:
and "finita"..honestly :biggrin:
Gary M
Репутация: 3
С нами: 9 лет 1 месяц

Сообщение #258 noel62 » 08.10.2015, 00:53

Hi guys,
Here is a new modded TEAC one. Hope you enjoy it.
https://dl.dropboxusercontent.com/u/414891/%5BAnalog%5D%20TEAC_NX_0.66.bin.zip

Добавлено спустя 19 минут 38 секунд:
May I suggest the following settings to use with foo_vis_vumeter. You may also set the gain while hoovering over the meters using the mouse wheel to 0db.
Enjoy!
noel62
Гость

Сообщение #259 Gary » 08.10.2015, 01:13

@SanJose
Seriously, I for a long time, almost every day, looked into this topic, in the hope that there will be at least one indicator and all in vain. And when that number comes up to me, I'm a little woozy with happiness. Don't pay any attention to it. I understand what you're saying, but using a translator to answer seriously difficult for me. As I'm not trying - one laugh :biggrin:
Gary M
Репутация: 3
С нами: 9 лет 1 месяц

Сообщение #260 SanJose » 08.10.2015, 15:23

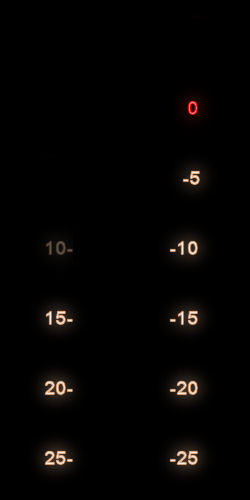

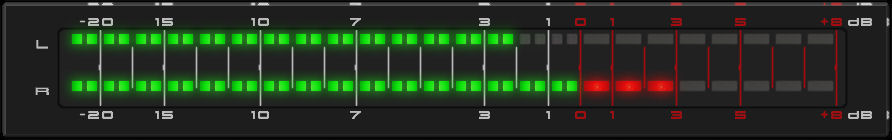

GRUNDIG V 7500

0 1 light system.

My personal set of the VU:
+5 dB for digital/led indicators
+10 dB for analog indicators
Offcourse 0 db is set via mouse :wink:
TEAC lookin good noel.

@Gary
For Beocord 1900 I have small problem, because there are not many photos on the internet it will be quite hard to do analog scale, but I will do my best. :wink:
Maybe You have good photos?
Вложения
GRUNDIG V 7500.zip
(120.68 КБ) Скачиваний: 954
SanJose
Репутация: 55
С нами: 11 лет 6 месяцев

Пред.След.

Вернуться в Секреты foobar2000
